26-8MX12-1108, Timing Pulley

26-8MX12-1108 - Steel Powerhouse® MX Pulleys

26-8MX12-1108

Click to Enlarge

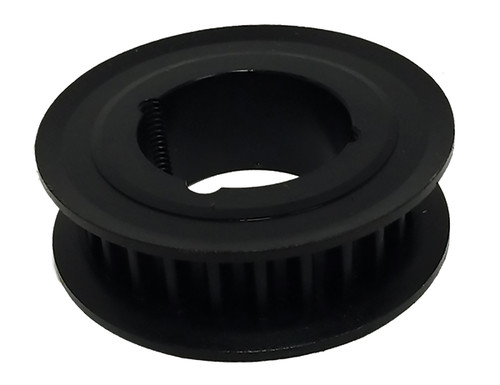

26-8MX12-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 26-8MX12-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26-8MX12-1108
Teeth 26
Tooth Style 8MX
For Belt Width (mm) 12.00
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1108 Bushing
Pitch Diameter (in) 2.607
Outside Diameter (in) 2.544
Flange Diameter (in) 2.953
Face Width (in) 0.875
Overall Length (in) 0.875
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.640
Unit System Inch
Bushing 1108
P.D. (mm) 66.00
O.D. (mm) 64.60
MOQ 1
Weight (lb) 0.84
Part Number Cross Reference 8MX-26S-12, B8MCS-26-12, 26G-8M-12-1108, 20431508, 8MX-26S-12-1108 HT500 SPKT, 8MPC26S12, 26-8MX12-1108, 481877, 26-8MX12-1108

Comparable to: 8MX-26S-12, B8MCS-26-12, 26G-8M-12-1108, 20431508, 8MX-26S-12-1108 HT500 SPKT, 8MPC26S12, 26-8MX12-1108, 481877, 26-8MX12-1108

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
