2600-D8P-50 Powerhouse™ Belts

2600-D8P-50, TP2600-8MGT-

Product Details for 2600-D8P-50

Comparable to: 2600-D8P-50, TP2600-8MGT-

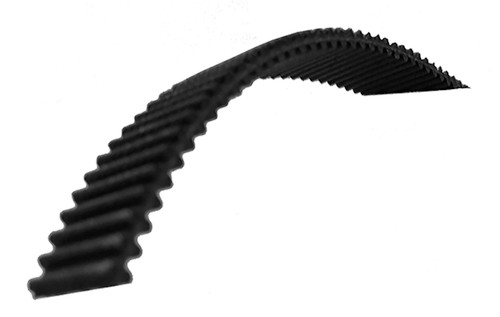

2600-D8P-50, Timing Belt, Powerhouse, Neoprene / Fiberglass, Double Sided Timing Belt

Specifications

Product Number 2600-D8P-50
Teeth 325
Tooth Style GT 8mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 50.00
Pitch Length (mm) 2,600.00
Construction Neoprene
Reinforcement Fiberglass
Weight (lb) 1.90
Part Number Cross Reference 2600-D8P-50, TP2600-8MGT-

Documentation

Download Catalog 2015_BBMAN_CATALOG_243.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
REACH Certification 2600-D8P-50_REACH_cert
RoHS Certification 2600-D8P-50_RoHS_cert
