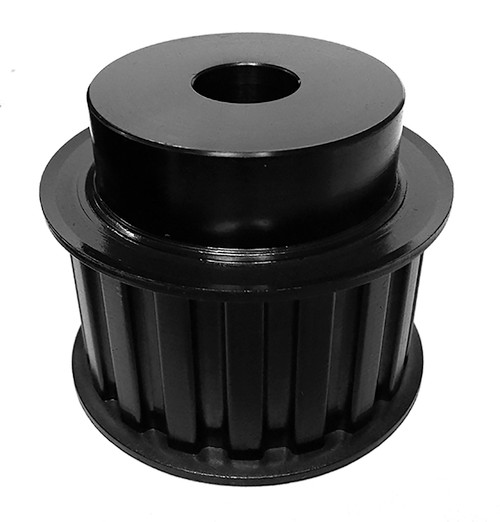

26H150-6FS8, Timing Pulley

26H150-6FS8 - Steel Imperial Pitch Pulleys

26H150-6FS8

Click to Enlarge

26H150-6FS8, Timing Pulley, Steel, Black Oxide,

Learn more about 26H150-6FS8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26H150-6FS8
Teeth 26
Tooth Style H
For Belt Width (in) 1.5000
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/4 Inch Minimum Plain Bore
Pitch Diameter (in) 4.138
Outside Diameter (in) 4.084
Flange Diameter (in) 4.369
Face Width (in) 1.812
Overall Length (in) 2.875
Hub Diameter (in) 3.375
Min. Bore (in) 0.750
Pulley Belt Width (in) 1.562
Unit System Inch
P.D. (mm) 105.00
O.D. (mm) 103.70
MOQ 1
Weight (lb) 7.90
Part Number Cross Reference 26H150 , 26HB150, 114352, 26H150MPB, P26H150, M26H150, 26H150-6FS8
