26HH150, Timing Pulley

26HH150 - Cast Iron Imperial Pitch Pulleys

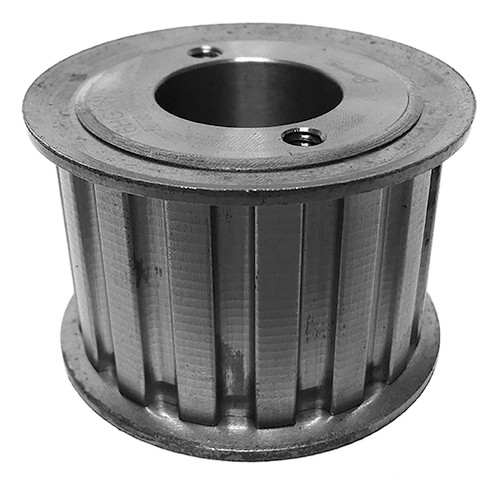

26HH150

26HH150 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

26HH150, Timing Pulley, Cast Iron

Learn more about 26HH150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26HH150
Teeth 26
Tooth Style H
For Belt Width (in) 1.5000
Type 16
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 4.138
Outside Diameter (in) 4.084
Flange Diameter (in) 4.375
Face Width (in) 1.750
Overall Length (in) 1.938
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 105.00
O.D. (mm) 103.70
MOQ 1
Weight (lb) 4.60
Part Number Cross Reference 26HH150, 26HH150, 26HH150
