26HP100, Timing Pulley

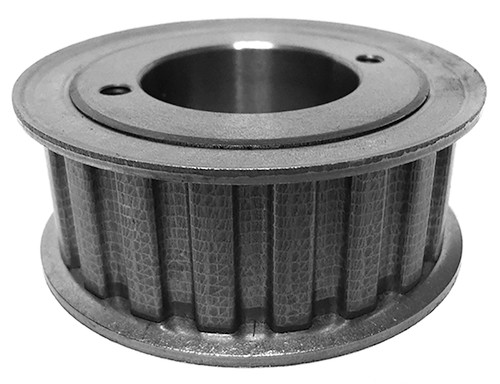

26HP100 - Cast Iron Imperial Pitch Pulleys

26HP100

26HP100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

26HP100, Timing Pulley, Cast Iron

Learn more about 26HP100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26HP100
Teeth 26
Tooth Style H
For Belt Width (in) 1.0000
Type 6
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 4.138
Outside Diameter (in) 4.084
Flange Diameter (in) 4.375
Face Width (in) 1.250
Overall Length (in) 2.125
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 105.00
O.D. (mm) 103.70
MOQ 1
Weight (lb) 3.40
Part Number Cross Reference 26HP100, 26HP100, 26HP100
