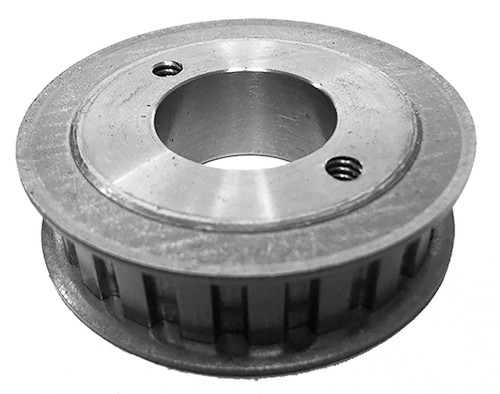

26LH050, Timing Pulley

26LH050 - Cast Iron Imperial Pitch Pulleys

26LH050

26LH050 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

26LH050, Timing Pulley, Cast Iron

Learn more about 26LH050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26LH050
Teeth 26
Tooth Style L
For Belt Width (in) 0.5000
Type 5
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 3.104
Outside Diameter (in) 3.074
Flange Diameter (in) 3.375
Face Width (in) 0.750
Overall Length (in) 1.438
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 79.00
O.D. (mm) 78.10
MOQ 1
Weight (lb) 1.06
Part Number Cross Reference 26LH050, 26LH050, 26LH050
