26LH100, Timing Pulley

26LH100 - Cast Iron Imperial Pitch Pulleys

26LH100

Click to Enlarge

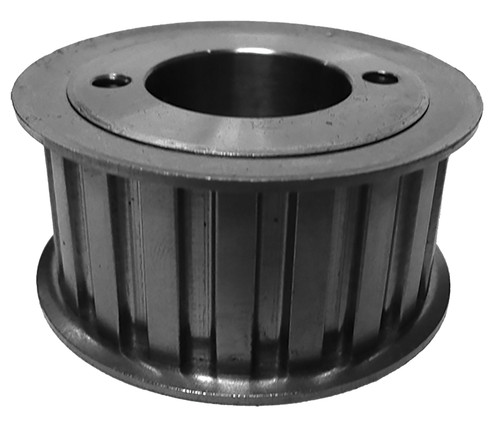

26LH100, Timing Pulley, Cast Iron

Learn more about 26LH100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26LH100
Teeth 26
Tooth Style L
For Belt Width (in) 1.0000
Type 4
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 3.104
Outside Diameter (in) 3.074
Flange Diameter (in) 3.375
Face Width (in) 1.250
Overall Length (in) 1.875
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 79.00
O.D. (mm) 78.10
MOQ 1
Weight (lb) 1.90
Part Number Cross Reference 26LH100, 26LH100, 26LH100
