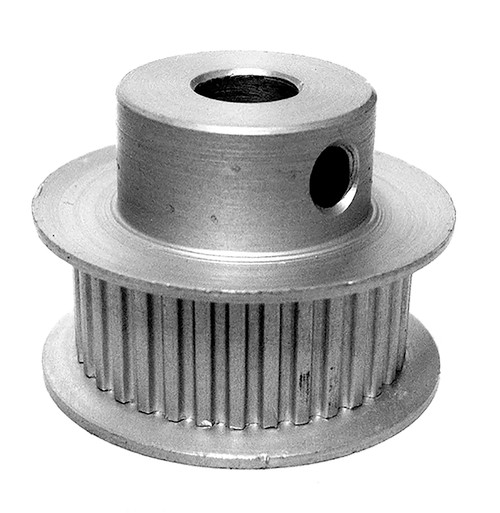

26LT312-6FA3, Timing Pulley

26LT312-6FA3

Click to Enlarge

26LT312-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 26LT312-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	26LT312-6FA3
Teeth	26
Tooth Style	LT
For Belt Width (in)	0.3125
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.675
Outside Diameter (in)	0.655
Flange Diameter (in)	0.840
Face Width (in)	0.449
Overall Length (in)	0.750
Hub Diameter (in)	0.494
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.350
Unit System	Inch
P.D. (mm)	17.00
O.D. (mm)	16.60
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A 6A6-26DF03108, A6A6-26DF03108, 26LT-312 X 1/4 6F, 26M312-1A X 1/4, 26LT312-6FA3, 26LT312-6FA3
Set Screw Quantity	2
