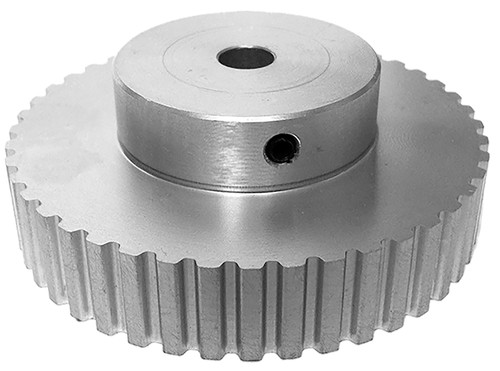

26XL037-6A3, Timing Pulley

26XL037-6A3 - Aluminum Imperial Pitch Pulleys

Product Details for 26XL037-6A3

Comparable to: 26XL037-6A3, A 6A3-26NF03708, A6A3-26NF03708, PT026D08L0

26XL037-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 26XL037-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26XL037-6A3
Teeth 26
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.665
Outside Diameter (in) 1.635
Face Width (in) 0.563
Overall Length (in) 0.937
Hub Diameter (in) 1.250
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 1
Weight (lb) 0.16
Part Number Cross Reference 26XL037-6A3, A 6A3-26NF03708, A6A3-26NF03708, PT026D08L0
