26XL037-6FA5, Timing Pulley

26XL037-6FA5

Click to Enlarge

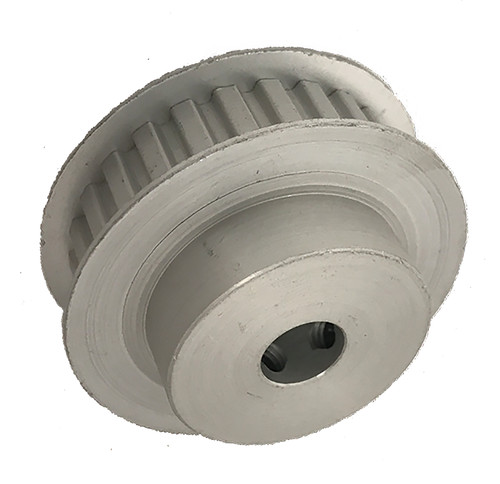

26XL037-6FA5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 26XL037-6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	26XL037-6FA5
Teeth	26
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	1.655
Outside Diameter (in)	1.635
Flange Diameter (in)	1.875
Face Width (in)	0.563
Overall Length (in)	0.906
Hub Diameter (in)	1.188
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	42.00
O.D. (mm)	41.50
MOQ	1
Weight (lb)	0.15
Part Number Cross Reference	A 6A3-26DF03712, A6A3-26DF03712, 26XL037 X 3/8 6F, TP20A6W6-26, 26XL037-1A X 3/8, 26XL037-6FA5, 26XL037-6FA5
Set Screw Quantity	2
