26XXHR500, Timing Pulley

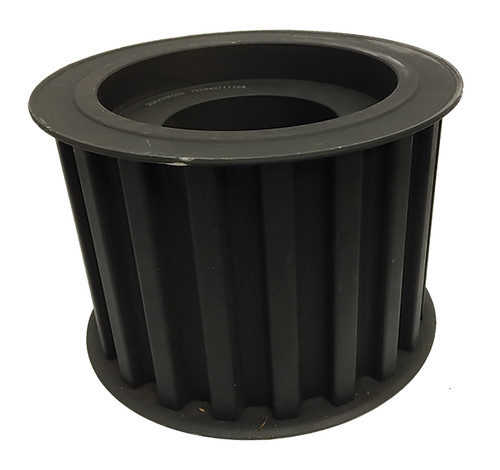

26XXHR500 - Cast Iron Imperial Pitch Pulleys

26XXHR500

26XXHR500 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

26XXHR500, Timing Pulley, Cast Iron

Learn more about 26XXHR500 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26XXHR500
Teeth 26
Tooth Style XXH
For Belt Width (in) 5.0000
Type 12
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R2 Bushing
Pitch Diameter (in) 10.345
Outside Diameter (in) 10.225
Flange Diameter (in) 11.063
Face Width (in) 5.813
Overall Length (in) 6.094
Hub Diameter (in) 5.375
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
P.D. (mm) 263.00
O.D. (mm) 259.70
MOQ 1
Weight (lb) 66.00
Part Number Cross Reference 26XXHR500, 26XXHR500, 26XXHR500
