28-14MX90-6FS16, Timing Pulley

28-14MX90-6FS16 - Cast Iron Powerhouse® MX Pulleys

Product Details for 28-14MX90-6FS16

Comparable to: 28-14MX90-6FS16, PB14MX-28S-90, 77169028, PB14MCS-28-90, 28G-14M-90-MPB, 208397

Click to Enlarge

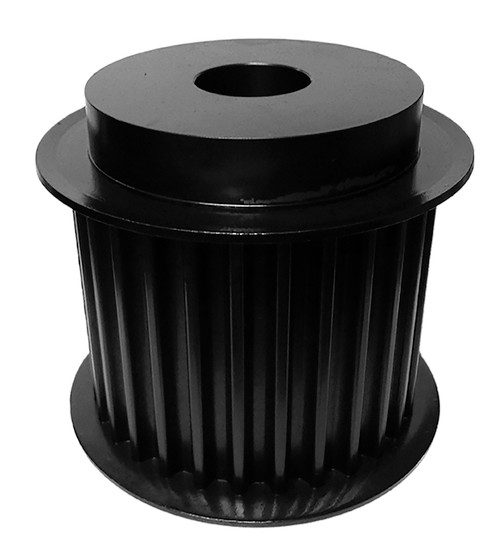

28-14MX90-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 28-14MX90-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-14MX90-6FS16
Teeth 28
Tooth Style GT2 14mm
For Belt Width (mm) 90.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 4.912
Outside Diameter (in) 4.802
Flange Diameter (in) 5.562
Face Width (in) 4.203
Overall Length (in) 5.141
Hub Diameter (in) 3.970
Min. Bore (in) 1.500
Pulley Belt Width (in) 3.880
Unit System Inch
Max. Bore (in) 3.72
Weight (lb) 18.20
Part Number Cross Reference 28-14MX90-6FS16, PB14MX-28S-90, 77169028, PB14MCS-28-90, 28G-14M-90-MPB, 208397
