28-14P40-2012, Timing Pulley

28-14P40-2012 - Cast Iron Powerhouse® Pulleys

Product Details for 28-14P40-2012

Comparable to: P28-14MGT-40, 2763415, B2814M40TL, P28-14M-40-2012, 20182760

Click to Enlarge

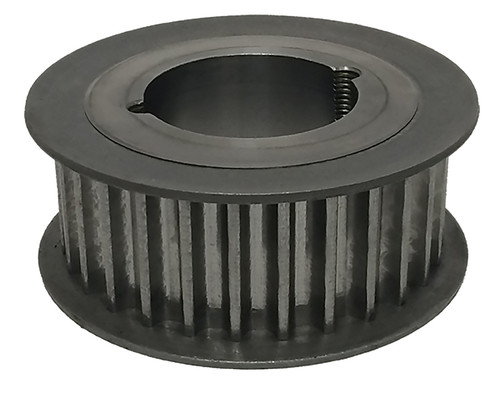

28-14P40-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 28-14P40-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-14P40-2012
Teeth 28
Tooth Style 14P
For Belt Width (mm) 40
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 4.912
Outside Diameter (in) 4.802
Flange Diameter (in) 5.562
Face Width (in) 2.130
Overall Length (in) 2.130
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.810
Unit System Inch
Bushing 2012
MOQ 1
Weight (lb) 5.75
Part Number Cross Reference P28-14MGT-40, 2763415, B2814M40TL, P28-14M-40-2012, 20182760
