28-3P09-6FA3, Timing Pulley

28-3P09-6FA3 - Aluminum Powerhouse® Pulleys

28-3P09-6FA3

Click to Enlarge

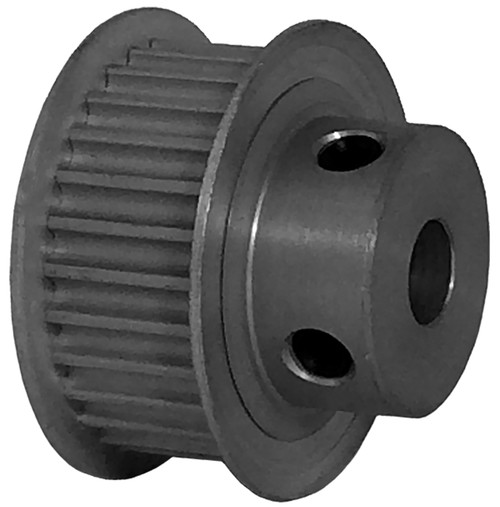

28-3P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28-3P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-3P09-6FA3
Teeth 28
Tooth Style 3P
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.053
Outside Diameter (in) 1.023
Flange Diameter (in) 1.173
Face Width (in) 0.506
Overall Length (in) 0.812
Hub Diameter (in) 0.701
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.400
Unit System Inch
P.D. (mm) 27.00
O.D. (mm) 26.00
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference 3MR-28S-09, 28-3P09-6FA3
Set Screw Quantity 2
