28-5P25-6FS6, Timing Pulley

28-5P25-6FS6

Click to Enlarge

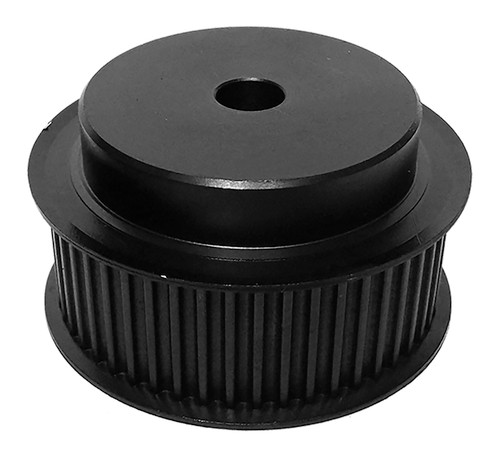

28-5P25-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 28-5P25-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	28-5P25-6FS6
Teeth	28
Tooth Style	5P
For Belt Width (mm)	25.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	1.754
Outside Diameter (in)	1.709
Flange Diameter (in)	2.031
Face Width (in)	1.280
Overall Length (in)	1.730
Hub Diameter (in)	1.370
Min. Bore (in)	0.375
Pulley Belt Width (in)	1.100
Unit System	Inch
P.D. (mm)	45.00
O.D. (mm)	43.40
MOQ	1
Weight (lb)	0.92
Part Number Cross Reference	P28-5MGT-25-MPB, 5MR-28S-25, 28-5P25-6FS6, 28-5P25-6FS6
