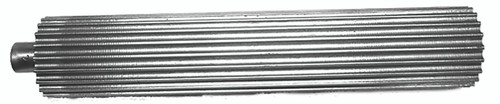

28-8M-PS8S, Timing Pulley Stock

28-8M-PS8S

28-8M-PS8S, Timing Pulley Stock, Steel

Learn more about 28-8M-PS8S Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	28-8M-PS8S
Teeth	28
Tooth Style	HTD8mm
Material	Steel
Pitch Diameter (in)	2.807
Outside Diameter (in)	2.759
Overall Length (in)	9.000
Unit System	Inch
Min. Usable Length (in)	8.000
P.D. (mm)	71.30
O.D. (mm)	70.10
MOQ	1
Weight (lb)	12.75
Part Number Cross Reference	28-8M-PS-8S, 28-8M-PS8S, 28-8M-PS8S
Shank Length (in)	1.0000
