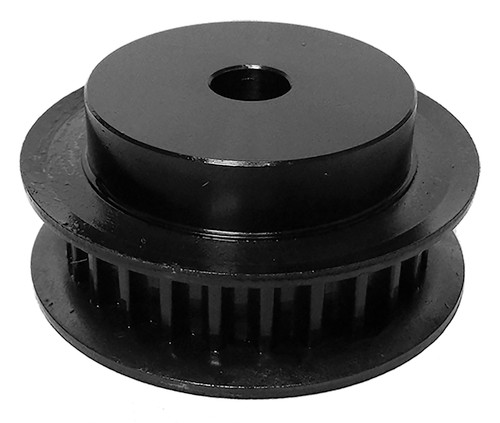

28-8MX12-6FS6, Timing Pulley

28-8MX12-6FS6

Click to Enlarge

28-8MX12-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 28-8MX12-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	28-8MX12-6FS6
Teeth	28
Tooth Style	8MX
For Belt Width (mm)	12.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.807
Outside Diameter (in)	2.744
Flange Diameter (in)	3.150
Face Width (in)	0.850
Overall Length (in)	1.313
Hub Diameter (in)	2.344
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.600
Unit System	Inch
P.D. (mm)	71.00
O.D. (mm)	69.70
MOQ	1
Weight (lb)	1.91
Part Number Cross Reference	PB8MX-28S-12, PB8MCS-28-12, 28G-8M-12-MPB, 20839701, PB8MX-28S-12 MPB, 8MPC28S12MPB, 28-8MX12-6FS6, 481872, 28-8MX12-6FS6
