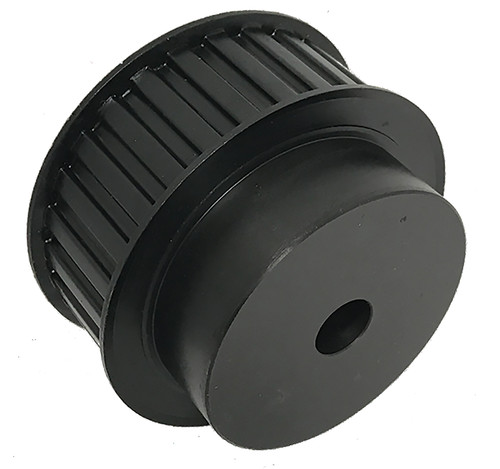

28H150-6FS8, Timing Pulley

28H150-6FS8

Click to Enlarge

28H150-6FS8, Timing Pulley, Steel, Black Oxide,

Learn more about 28H150-6FS8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	28H150-6FS8
Teeth	28
Tooth Style	H
For Belt Width (in)	1.5000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.750
Bore Description	3/4 Inch Minimum Plain Bore
Pitch Diameter (in)	4.456
Outside Diameter (in)	4.402
Flange Diameter (in)	4.687
Face Width (in)	1.812
Overall Length (in)	2.875
Hub Diameter (in)	3.500
Min. Bore (in)	0.75
Pulley Belt Width (in)	1.562
Unit System	Inch
P.D. (mm)	113.00
O.D. (mm)	111.80
MOQ	1
Weight (lb)	9.34
Part Number Cross Reference	28H150, 28HB150, 28H150 X 3/4 MPB, 28H150MPB, P28H150, 35376714, P28H150-PB, 28H150-6FS8, 114353, 28H150-6FS8
