28H300-6FS11, Timing Pulley

28H300-6FS11 - Steel Imperial Pitch Pulleys

28H300-6FS11

Click to Enlarge

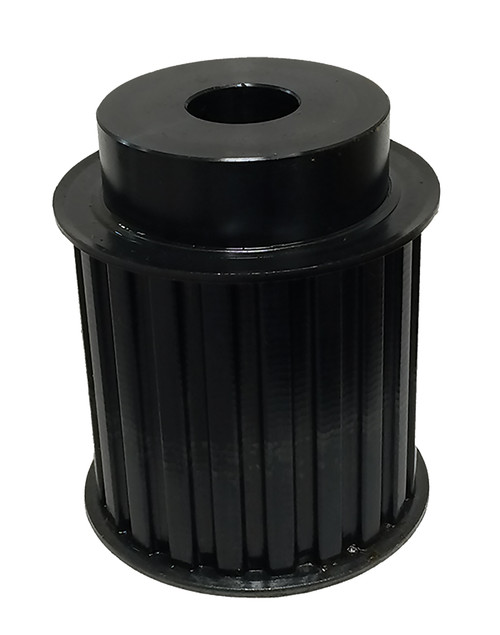

28H300-6FS11, Timing Pulley, Steel, Black Oxide,

Learn more about 28H300-6FS11 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28H300-6FS11
Teeth 28
Tooth Style H
For Belt Width (in) 3.0000
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.125
Bore Description 1-1/8 Inch Minimum Plain Bore
Pitch Diameter (in) 4.456
Outside Diameter (in) 4.402
Flange Diameter (in) 4.687
Face Width (in) 3.375
Overall Length (in) 4.437
Hub Diameter (in) 3.500
Min. Bore (in) 1.125
Pulley Belt Width (in) 3.125
Unit System Inch
P.D. (mm) 113.00
O.D. (mm) 111.80
MOQ 1
Weight (lb) 14.45
Part Number Cross Reference 28H300, 28HB300, 28H300 X 1-1/8 MPB, 28H300MPB, P28H300, P28H300-PB, 28H300-6FS11, 114372, 28H300-6FS11

Comparable to: 28H300, 28HB300, 28H300 X 1-1/8 MPB, 28H300MPB, P28H300, P28H300-PB, 28H300-6FS11, 114372, 28H300-6FS11
