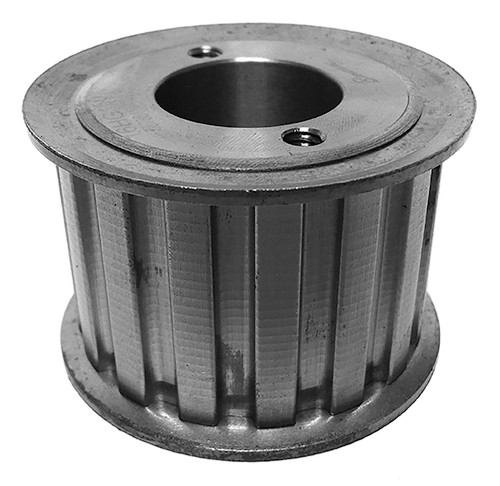

28HH150, Timing Pulley

28HH150 - Cast Iron Imperial Pitch Pulleys

28HH150

28HH150 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

28HH150, Timing Pulley, Cast Iron

Learn more about 28HH150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28HH150
Teeth 28
Tooth Style H
For Belt Width (in) 1.5000
Type 16
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 4.456
Outside Diameter (in) 4.402
Flange Diameter (in) 4.688
Face Width (in) 1.750
Overall Length (in) 1.938
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 113.00
O.D. (mm) 111.80
MOQ 1
Weight (lb) 5.58
Part Number Cross Reference 28HH150, 28HH150, 28HH150
