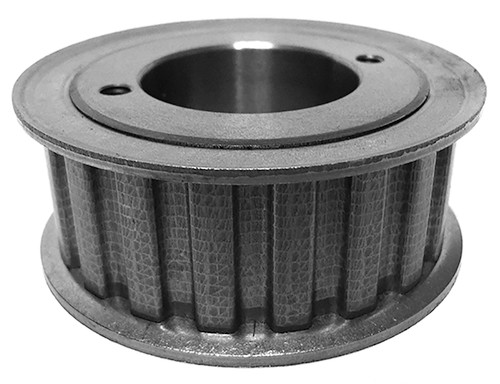

28HP100, Timing Pulley

28HP100 - Cast Iron Imperial Pitch Pulleys

28HP100

28HP100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

28HP100, Timing Pulley, Cast Iron

Learn more about 28HP100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28HP100
Teeth 28
Tooth Style H
For Belt Width (in) 1.0000
Type 6
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 4.456
Outside Diameter (in) 4.402
Flange Diameter (in) 4.688
Face Width (in) 1.250
Overall Length (in) 2.125
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 113.00
O.D. (mm) 111.80
MOQ 1
Weight (lb) 4.03
Part Number Cross Reference 28HP100, 28HP100, 28HP100
