28MP012-6FA3, Timing Pulley

28MP012-6FA3 - Aluminum Imperial Pitch Pulleys

28MP012-6FA3

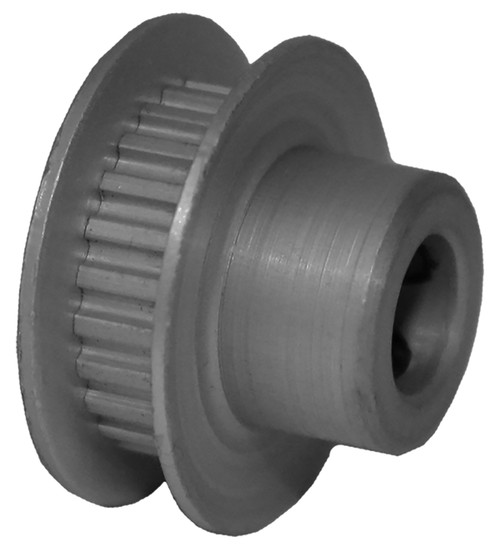

Click to Enlarge

28MP012-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28MP012-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28MP012-6FA3
Teeth 28
Tooth Style MXL
For Belt Width (in) 0.1250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.713
Outside Diameter (in) 0.693
Flange Diameter (in) 0.895
Face Width (in) 0.260
Overall Length (in) 0.484
Hub Diameter (in) 0.494
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.160
Unit System Inch
P.D. (mm) 18.00
O.D. (mm) 17.60
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6N16-028DF1208, A6N16-028DF1208, PB28MXL012, 28MP-012-1/4- 6FA, PT028A08L02T, TP7A4W2-28, 1375K27, 28MP012-6FA3, 28MP012-6FA3
Set Screw Quantity 2

Comparable to: A 6N16-028DF1208, A6N16-028DF1208, PB28MXL012, 28MP-012-1/4- 6FA, PT028A08L02T, TP7A4W2-28, 1375K27, 28MP012-6FA3, 28MP012-6FA3

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
