28XHR300, Timing Pulley

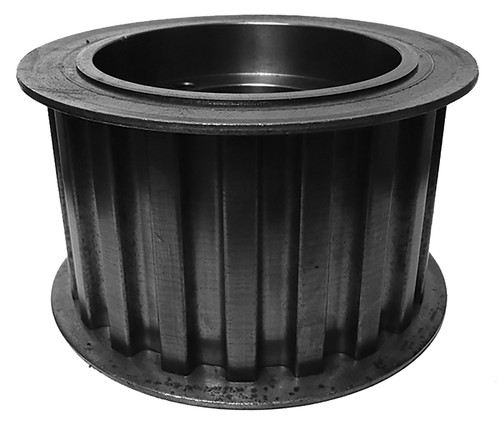

28XHR300 - Cast Iron Imperial Pitch Pulleys

28XHR300

28XHR300 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

28XHR300, Timing Pulley, Cast Iron

Learn more about 28XHR300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28XHR300
Teeth 28
Tooth Style XH
For Belt Width (in) 3.0000
Type 11
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R1 Bushing
Pitch Diameter (in) 7.799
Outside Diameter (in) 7.689
Flange Diameter (in) 8.375
Face Width (in) 3.625
Overall Length (in) 3.906
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 198.00
O.D. (mm) 195.30
MOQ 1
Weight (lb) 25.90
Part Number Cross Reference 28XHR300, 28XHR300, 28XHR300
