28XHR400, Timing Pulley

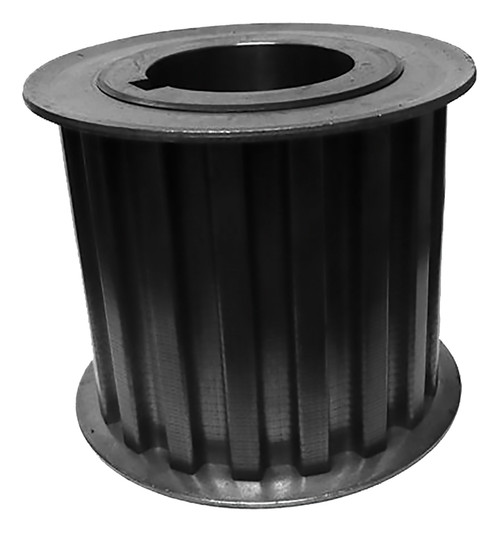

28XHR400 - Cast Iron Imperial Pitch Pulleys

28XHR400

28XHR400 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

28XHR400, Timing Pulley, Cast Iron

Learn more about 28XHR400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28XHR400
Teeth 28
Tooth Style XH
For Belt Width (in) 4.0000
Type 11
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R2 Bushing
Pitch Diameter (in) 7.799
Outside Diameter (in) 7.689
Flange Diameter (in) 8.375
Face Width (in) 4.688
Overall Length (in) 5.156
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
P.D. (mm) 198.00
O.D. (mm) 195.30
MOQ 1
Weight (lb) 39.46
Part Number Cross Reference 28XHR400, 28XHR400, 28XHR400
