Product Details for 28XL037-3FA3

Comparable to: 28XL037-3FA3, A 6A3-28H3708, A6A3-28H3708

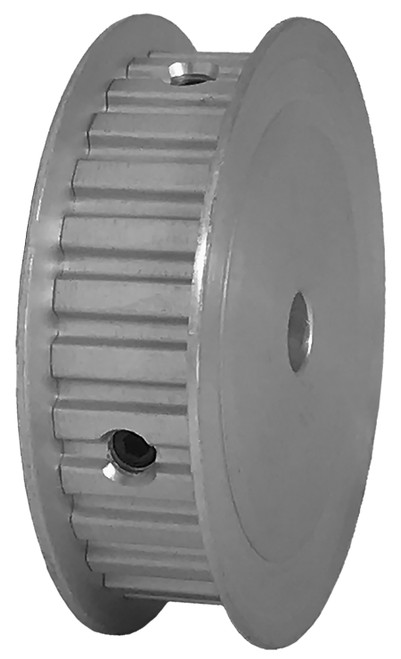

28XL037-3FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Our 28XL037-3FA3 Aluminum Imperial Pitch Pulleys are made from the highest quality materials & can meet any company's needs . Contact B&B Manufacturing today for a quote!

Specifications

Product Number 28XL037-3FA3
Teeth 28
Tooth Style XL
For Belt Width (in) 0.375
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.783
Outside Diameter (in) 1.763
Flange Diameter (in) 2.000
Face Width (in) 0.563
Overall Length (in) 0.563
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 1.4505
Weight (lb) 0.15
Part Number Cross Reference 28XL037-3FA3, A 6A3-28H3708, A6A3-28H3708
