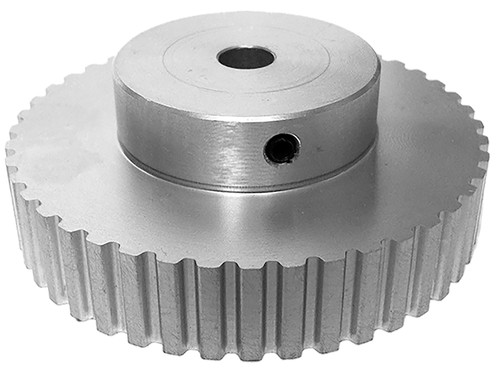

28XL037-6A3, Timing Pulley

28XL037-6A3 - Aluminum Imperial Pitch Pulleys

Product Details for 28XL037-6A3

Comparable to: 28XL037-6A3, A 6A3-28NF03708, A6A3-28NF03708, PT028D08L0

28XL037-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28XL037-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28XL037-6A3
Teeth 28
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.783
Outside Diameter (in) 1.763
Face Width (in) 0.563
Overall Length (in) 0.937
Hub Diameter (in) 1.250
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 1
Weight (lb) 0.18
Part Number Cross Reference 28XL037-6A3, A 6A3-28NF03708, A6A3-28NF03708, PT028D08L0
