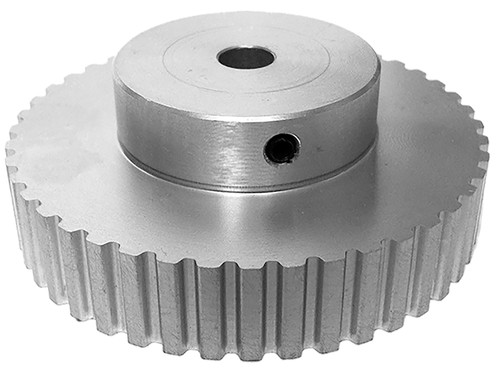

28XL037M6A8, Timing Pulley

28XL037M6A8 - Aluminum Metric Pulleys

Product Details for 28XL037M6A8

Comparable to: 28XL037M6A8, A 6A3M28NF09508, A6A3M28NF09508

28XL037M6A8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28XL037M6A8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28XL037M6A8
Teeth 28
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 8.00
Set Screw 2 x M4 @ 90°
Pulley Belt Width (mm) 9.50
Unit System Inch
P.D. (mm) 45.30
O.D. (mm) 44.80
Face Width (mm) 23.80
Overall Length (mm) 9.50
Hub Diameter (mm) 32.00
Weight (lb) 0.20
Part Number Cross Reference 28XL037M6A8, A 6A3M28NF09508, A6A3M28NF09508
