29-14P40-2012, Timing Pulley

29-14P40-2012

Click to Enlarge

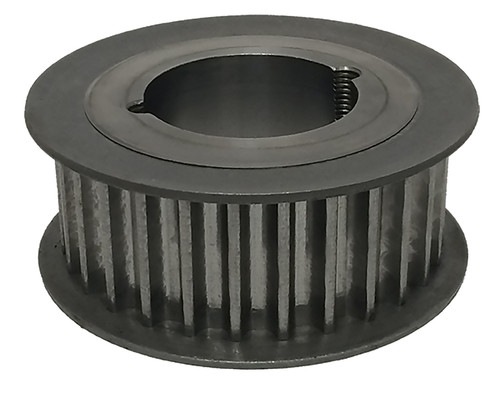

29-14P40-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 29-14P40-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	29-14P40-2012
Teeth	29
Tooth Style	14P
For Belt Width (mm)	40.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	5.088
Outside Diameter (in)	4.978
Flange Diameter (in)	5.562
Face Width (in)	2.130
Overall Length (in)	2.130
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.810
Unit System	Inch
Bushing	2012
P.D. (mm)	129.00
O.D. (mm)	126.40
MOQ	1
Weight (lb)	7.00
Part Number Cross Reference	P29-14MGT-40, B2914M40TL, P29-14M-40-2012, 20182766, P29-14M-40-2012 HT250 SPKT, P2914M40TL, 29-14P40-2012, 112903, 29-14P40-2012
