29-8MX21-1108, Timing Pulley

29-8MX21-1108 - Steel Powerhouse® MX Pulleys

Product Details for 29-8MX21-1108

Comparable to: 8MX-29S-21, 77182029, 8MX29S21-1108, 2765105, B8MCS-29-21, 29G-8M-21-1108, 20839704, 481920, 8MPC29S21

Click to Enlarge

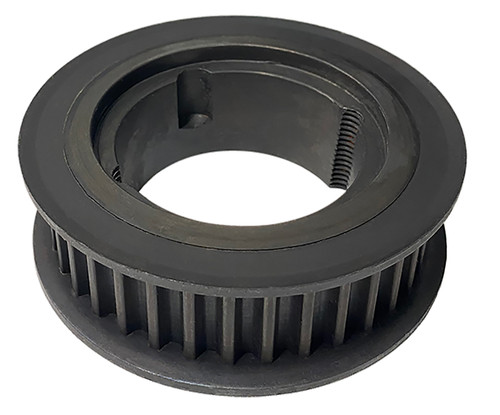

29-8MX21-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 29-8MX21-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 29-8MX21-1108
Teeth 29
Tooth Style 8MX
For Belt Width (mm) 21
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.907
Outside Diameter (in) 2.844
Flange Diameter (in) 3.346
Face Width (in) 1.203
Overall Length (in) 1.203
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.960
Unit System Inch
Bushing 1108
MOQ 1
Weight (lb) 1.31
Part Number Cross Reference 8MX-29S-21, 77182029, 8MX29S21-1108, 2765105, B8MCS-29-21, 29G-8M-21-1108, 20839704, 481920, 8MPC29S21
