29-8P30-1108, Timing Pulley

29-8P30-1108 - Steel Powerhouse® Pulleys

29-8P30-1108

Click to Enlarge

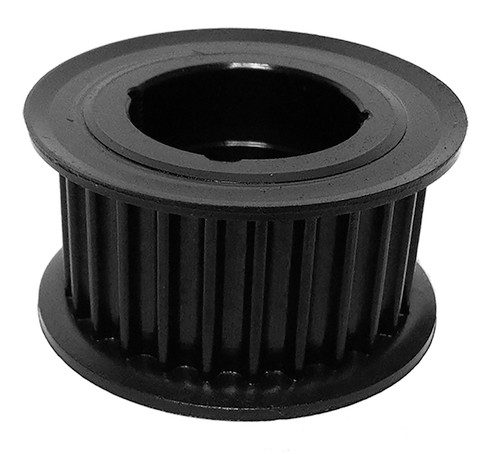

29-8P30-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 29-8P30-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 29-8P30-1108
Teeth 29
Tooth Style 8P
For Belt Width (mm) 30.00
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1108 Bushing
Pitch Diameter (in) 2.907
Outside Diameter (in) 2.853
Flange Diameter (in) 3.256
Face Width (in) 1.500
Overall Length (in) 1.500
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.260
Unit System Inch
Bushing 1108
P.D. (mm) 74.00
O.D. (mm) 72.50
MOQ 1
Weight (lb) 1.50
Part Number Cross Reference P29-8MGT-30, B298M30TL, P29-8M30-1108, 29-8P30-1108, 29-8P30-1108
