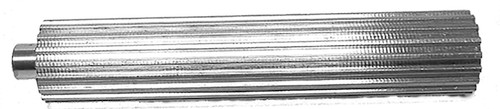

29T5-PS160A, Timing Pulley Stock

29T5-PS160A

29T5-PS160A, Timing Pulley Stock, Aluminum

Learn more about 29T5-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	29T5-PS160A
Teeth	29
Tooth Style	T5mm
Material	Aluminum
Pitch Diameter (in)	1.825
Outside Diameter (in)	1.785
Overall Length (in)	7.100
Unit System	Metric
Min. Usable Length (in)	6.300
P.D. (mm)	46.40
O.D. (mm)	45.30
Min. Usable Length (mm)	160.00
Overall Length (mm)	185.00
MOQ	1
Weight (lb)	1.45
Part Number Cross Reference	A 6A34M029T16, A6A34M029T16, T5-29S-PS-160A, 29T5-PS-160A, 29-5M-P-8A, 29T5-PS160A, 29T5-PS160A
Shank Length (in)	0.8000

Comparable to: A 6A34M029T16, A6A34M029T16, T5-29S-PS-160A, 29T5-PS-160A, 29-5M-P-8A, 29T5-PS160A, 29T5-PS160A
