2AK134H, V-Belt Pulley

2AK134H

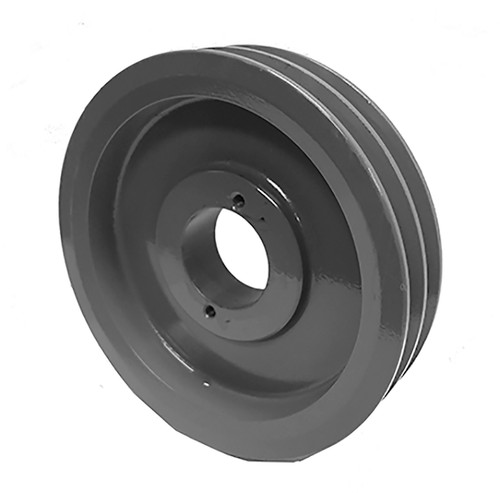

2AK134H, V-Belt Pulley, Cast Iron

Learn more about 2AK134H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	2AK134H
Type	3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	13.250
Face Width (in)	1.375
Overall Length (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	13.000
Pitch Dia. "3L"	12.660
Sheave Type	AK
For Belt Type	4L, 3L, or A
Weight (lb)	11.40
Part Number Cross Reference	2AK134QT, 2AK134H, 2AK134-QT, 20179520, 2AK134H SHEAVE, 2AK134, 2MAL132, 2AK134H, 2MAL132, 2AK134H
Grooves	2
