2AK154H, V-Belt Pulley

2AK154H, 2AK154-QT, 20179522, 2MAL154

Product Details for 2AK154H

Comparable to: 2AK154H, 2AK154-QT, 20179522, 2AK154, 2MAL153, 2AK154QT

Click to Enlarge

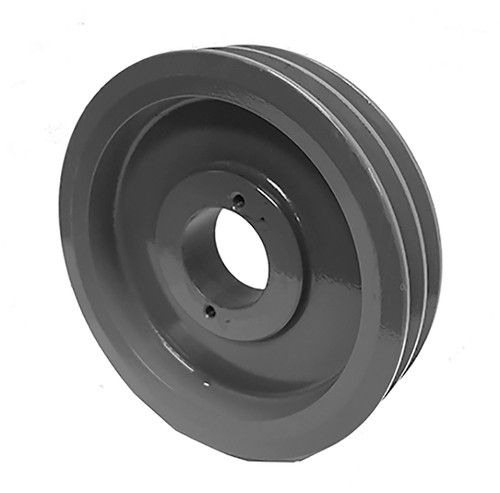

2AK154H, V-Belt Pulley, Cast Iron

Learn more about 2AK154H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2AK154H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 15.250
Face Width (in) 1.375
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 15.000
Pitch Dia. "3L" 14.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 13.30
Part Number Cross Reference 2AK154H, 2AK154-QT, 20179522, 2AK154, 2MAL153, 2AK154QT
Grooves 2
