2AK34x1, V-Belt Pulley

2AK34x1

2AK34x1

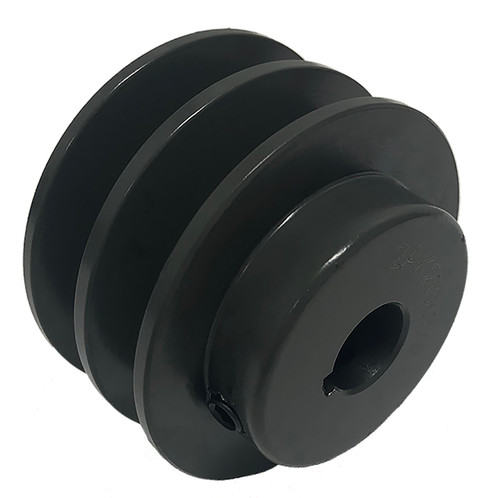

2AK34x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2AK34x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2AK34x1
Type 1
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 inch Finished Bore
Outside Diameter (in) 3.450
Face Width (in) 1.375
Overall Length (in) 1.844
Hub Diameter (in) 2.125
Min. Bore (in) 0.625
Unit System Inch
MOQ 1
Pitch Dia. "A" 3.200
Pitch Dia. "3L" 2.860
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 2.40
Part Number Cross Reference 2AK34 1, 2AK34x1, 2AK34-1 PULLEY, 20179694, 2AK34 X 1 SHEAVE, 2AK341, 2MA35X1, 2AK34x1, 2MA35X1, 2AK34x1
Grooves 2
Set Screw Quantity 1

Related Products

Comparable to: 2AK34 1, 2AK34x1, 2AK34-1 PULLEY, 20179694, 2AK34 X 1 SHEAVE, 2AK341, 2MA35X1, 2AK34x1, 2MA35X1, 2AK34x1
