2AK39x1, V-Belt Pulley

Product Details for 2AK39x1

Comparable to: 2AK39.1, 2AK39-1 PULLEY, 20179699, 121878, 2AK391, 2AK39-1, 2MA38x1

Click to Enlarge

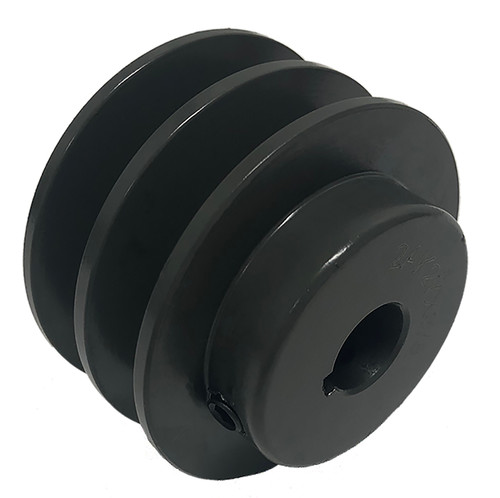

2AK39x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2AK39x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2AK39x1
Type 2
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 3.750
Face Width (in) 1.375
Overall Length (in) 1.844
Hub Diameter (in) 2.125
Min. Bore (in) 0.625
MOQ 1
Pitch Dia. "A" 3.500
Pitch Dia. "3L" 3.160
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 2.50
Part Number Cross Reference 2AK39.1, 2AK39-1 PULLEY, 20179699, 121878, 2AK391, 2AK39-1, 2MA38x1
Grooves 2
Set Screw Quantity 1
