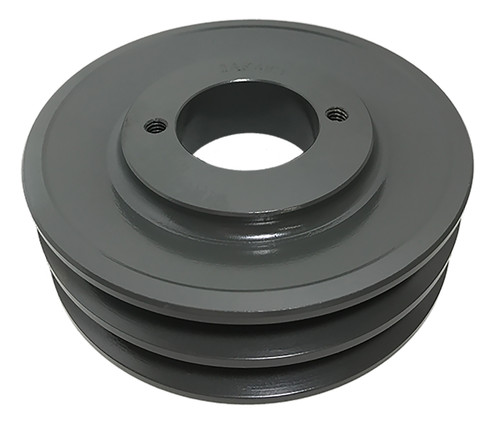

2AK41H, V-Belt Pulley

2AK41H

2AK41H, V-Belt Pulley, Cast Iron

Learn more about 2AK41H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	2AK41H
Type	2
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	3.950
Face Width (in)	1.375
Overall Length (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	3.700
Pitch Dia. "3L"	3.360
Sheave Type	AK
For Belt Type	4L, 3L, or A
Weight (lb)	1.90
Part Number Cross Reference	2AK41QT, 2AK41H, 2AK41-QT, 20179528, 2AK41H SHEAVE, 2AK41, 2MAL39, 2AK41H, 2MAL39, 2AK41H
Grooves	2
