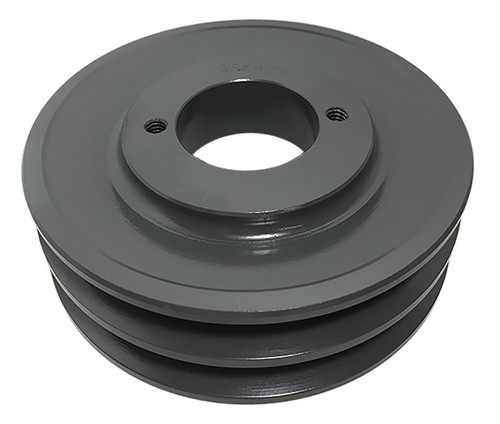

2AK46H, V-Belt Pulley

2AK46H

2AK46H, V-Belt Pulley, Cast Iron

Learn more about 2AK46H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	2AK46H
Type	2
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	4.450
Face Width (in)	1.375
Overall Length (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	4.200
Pitch Dia. "3L"	3.860
Sheave Type	AK
For Belt Type	4L, 3L, or A
Weight (lb)	2.50
Part Number Cross Reference	2AK46QT, 2AK46H, 2AK46-QT, 20179530, 2AK46H SHEAVE, 2AK46, 2MAL44, 2AK46H, 2MAL44, 2AK46H
Grooves	2
