2AK49x1, V-Belt Pulley

2AK49x1

2AK49x1

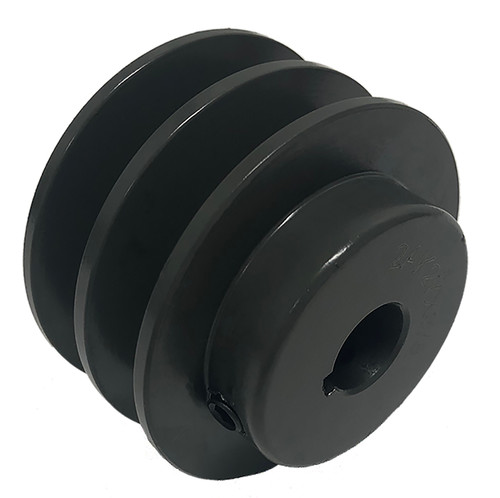

2AK49x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2AK49x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2AK49x1
Type 2
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 inch Finished Bore
Outside Diameter (in) 4.750
Face Width (in) 1.375
Overall Length (in) 1.844
Hub Diameter (in) 2.375
Min. Bore (in) 0.750
Unit System Inch
MOQ 1
Pitch Dia. "A" 4.500
Pitch Dia. "3L" 4.160
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 3.20
Part Number Cross Reference 2AK49 1, 2AK49x1, 2AK49x1
Grooves 2
Set Screw Quantity 1
