2AK51x1, V-Belt Pulley

Product Details for 2AK51x1

Comparable to: 2AK51 1., 2AK51-1 PULLEY, 20179723, 121901, 2AK511, 2AK51-1, 2MA50x1

Click to Enlarge

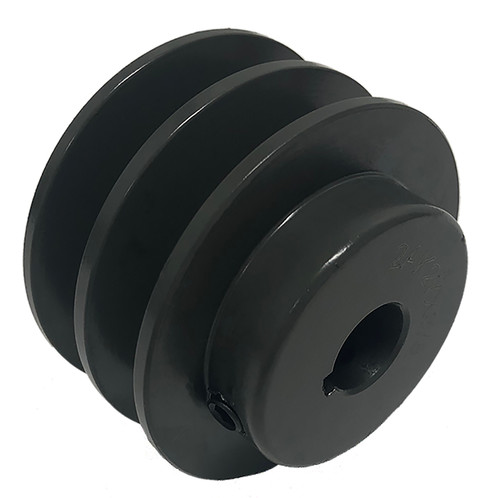

2AK51x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2AK51x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2AK51x1
Type 2
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 4.950
Face Width (in) 1.375
Overall Length (in) 1.844
Hub Diameter (in) 2.375
Min. Bore (in) 0.750
MOQ 1
Pitch Dia. "A" 4.700
Pitch Dia. "3L" 4.360
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 3.50
Part Number Cross Reference 2AK51 1., 2AK51-1 PULLEY, 20179723, 121901, 2AK511, 2AK51-1, 2MA50x1
Grooves 2
Set Screw Quantity 1
