2AK54x1, V-Belt Pulley

Product Details for 2AK54x1

Comparable to: 2AK54 1., 2AK54-1 PULLEY, 20179728, 121905, 2AK541, 2AK54-1, 2MA53x1

Click to Enlarge

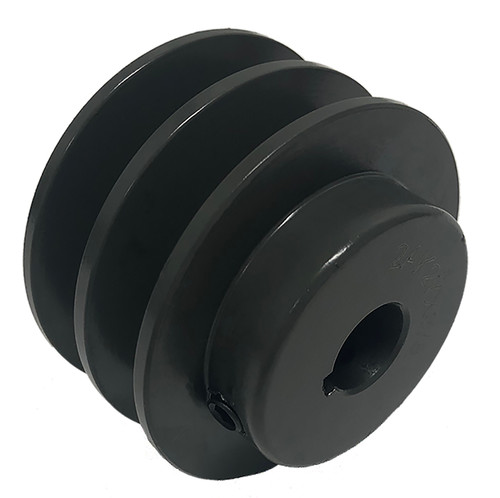

2AK54x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2AK54x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2AK54x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 5.250
Face Width (in) 1.375
Overall Length (in) 1.844
Hub Diameter (in) 2.375
Min. Bore (in) 0.625
MOQ 1
Pitch Dia. "A" 5.000
Pitch Dia. "3L" 4.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 3.70
Part Number Cross Reference 2AK54 1., 2AK54-1 PULLEY, 20179728, 121905, 2AK541, 2AK54-1, 2MA53x1
Grooves 2
Set Screw Quantity 1
