2AK61H, V-Belt Pulley

2AK61H, 2AK61-QT, 20179536, 2MAL61

Product Details for 2AK61H

Comparable to: 2AK61H, 2AK61-QT, 20179536, 2AK61, 2MAL60, 2AK61QT

Click to Enlarge

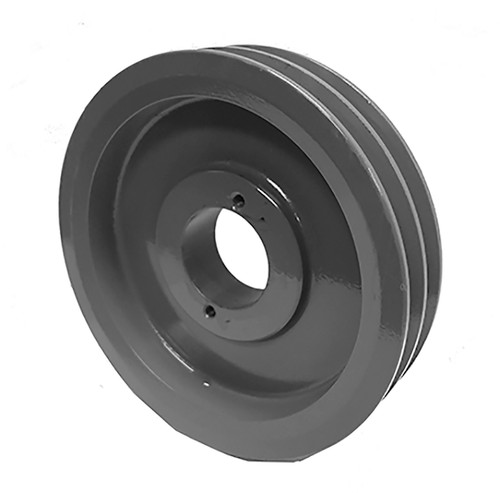

2AK61H, V-Belt Pulley, Cast Iron

Learn more about 2AK61H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2AK61H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 5.950
Face Width (in) 1.375
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 5.700
Pitch Dia. "3L" 5.360
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 3.30
Part Number Cross Reference 2AK61H, 2AK61-QT, 20179536, 2AK61, 2MAL60, 2AK61QT
Grooves 2
