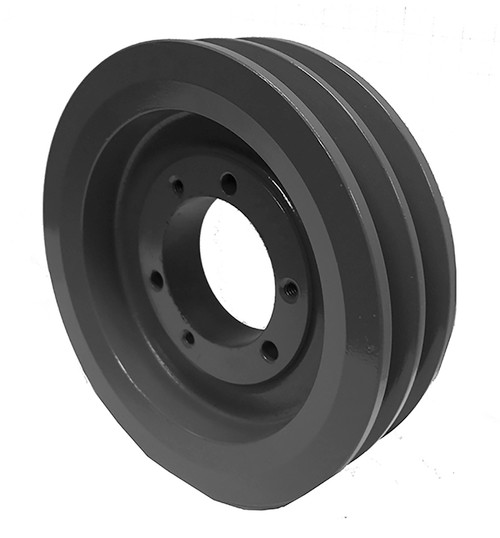

2B250SF, V-Belt Pulley

2B250SF

2B250SF, V-Belt Pulley, Cast Iron

Learn more about 2B250SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	2B250SF
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Outside Diameter (in)	25.350
Face Width (in)	1.750
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
MOQ	1
Pitch Dia. "A"	24.600
Pitch Dia. "B"	25.000
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	41.00
Part Number Cross Reference	QD2A24.6/B25.0, 2B250SF, 25.0-2B-SF, 20179170, 2B250-SF SHEAVE, 2502B, 2B250, 2B250SF, 455606, 2B250SF
Grooves	2
