2B34SH, V-Belt Pulley

2B34SH, 3.4-2B-SH, 20179194, 342B, 2B34

Product Details for 2B34SH

Comparable to: QD2A3.0/B3.4, 2B70SK, 2B34SH, 3.4-2B-SH, 20179194, 342B, 2B3.4, 2/B340SH, 82246091, 2B34, 2BQ34

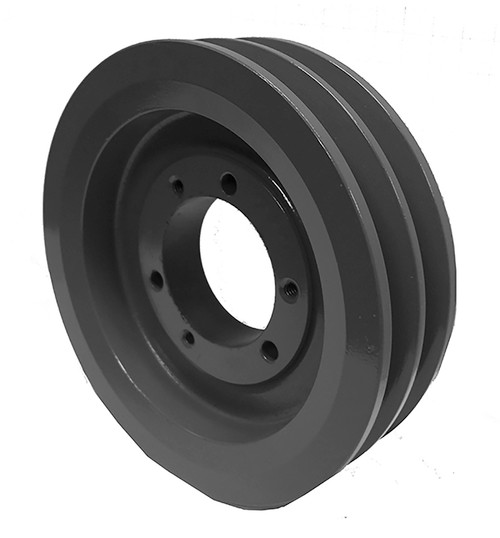

Click to Enlarge

2B34SH, V-Belt Pulley, Cast Iron

Learn more about 2B34SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2B34SH
Type E1
Material Cast Iron
Bore Type QD
Bore (in) SH
Outside Diameter (in) 3.000
Face Width (in) 1.750
Min. Bore (in) 0.500
Unit System Inch
Bushing SH
MOQ 1
Pitch Dia. "A" 3.000
Pitch Dia. "B" 3.400
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 3.20
Part Number Cross Reference QD2A3.0/B3.4, 2B70SK, 2B34SH, 3.4-2B-SH, 20179194, 342B, 2B3.4, 2/B340SH, 82246091, 2B34, 2BQ34
Grooves 2
