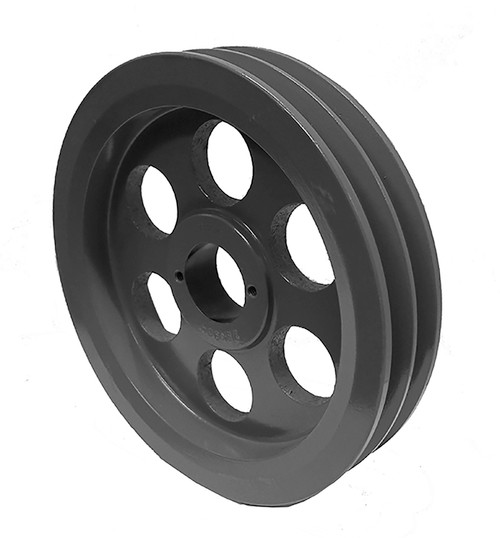

2BK110H, V-Belt Pulley

2BK110H

2BK110H, V-Belt Pulley, Cast Iron

Learn more about 2BK110H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	2BK110H
Type	3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	10.750
Face Width (in)	1.750
Overall Length (in)	1.750
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	10.000
Pitch Dia. "B"	10.400
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	9.30
Part Number Cross Reference	2BK110QT, 2BK110H, 2BK110-QT, 20179542, 2BK110H SHEAVE, 2BK110, 2MBL107, 2BK110H, 2MBL107, 2BK110H
Grooves	2
