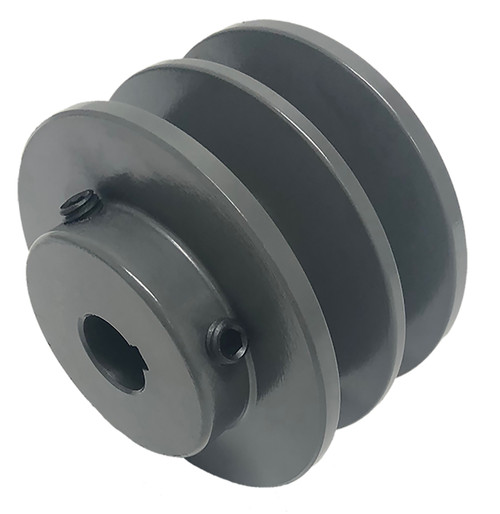

2BK110x1, V-Belt Pulley

2BK110x1

2BK110x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK110x1 to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	2BK110x1
Type	3
Material	Cast Iron
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 inch Finished Bore
Outside Diameter (in)	10.750
Face Width (in)	1.750
Overall Length (in)	2.094
Hub Diameter (in)	2.500
Min. Bore (in)	1
Unit System	Inch
MOQ	1
Pitch Dia. "A"	10.000
Pitch Dia. "B"	10.400
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	13.82
Part Number Cross Reference	2BK110 1, 2BK110x1, 2BK110-1 PULLEY, 20179777, 2BK110 X 1 SHEAVE, 2BK1101, 2MB108X1, 2BK110x1, 2MB108X1, 2BK110x1
Grooves	2
Set Screw Quantity	1
