2BK130x1, V-Belt Pulley

Product Details for 2BK130x1

Comparable to: 2BK130 1., 2BK130-1 PULLEY, 20179783, 121996, 2BK1301, 2BK130-1, 2MB128x1

Click to Enlarge

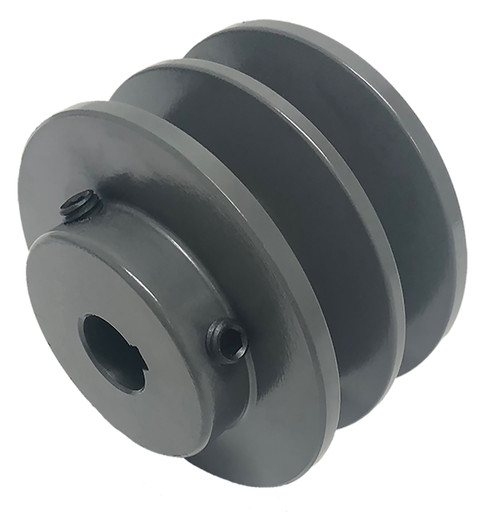

2BK130x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK130x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK130x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 12.750
Face Width (in) 1.750
Overall Length (in) 2.094
Hub Diameter (in) 2.875
Min. Bore (in) 1.000
MOQ 1
Pitch Dia. "A" 12.000
Pitch Dia. "B" 12.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 16.71
Part Number Cross Reference 2BK130 1., 2BK130-1 PULLEY, 20179783, 121996, 2BK1301, 2BK130-1, 2MB128x1
Grooves 2
Set Screw Quantity 1
