2BK27x1, V-Belt Pulley

Product Details for 2BK27x1

Comparable to: 2BK27 1., 2BK27-1 PULLEY, 20179807, 121740, 2BK271, 2BK27-1, 84431139, 2MB28x1

Click to Enlarge

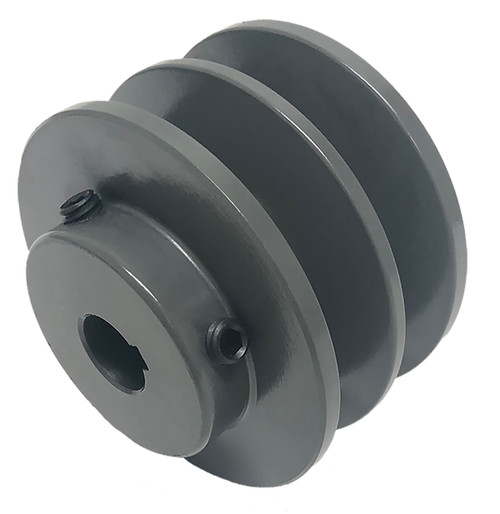

2BK27x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK27x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK27x1
Type 1
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 2.700
Face Width (in) 1.750
Overall Length (in) 2.219
Hub Diameter (in) 2.125
Min. Bore (in) 0.500
MOQ 1
Pitch Dia. "A" 2.100
Pitch Dia. "B" 2.500
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 1.55
Part Number Cross Reference 2BK27 1., 2BK27-1 PULLEY, 20179807, 121740, 2BK271, 2BK27-1, 84431139, 2MB28x1
Grooves 2
Set Screw Quantity 1
