2BK32x1, V-Belt Pulley

Product Details for 2BK32x1

Comparable to: 2BK32 1., 2BK32-1 PULLEY, 20179821, 121751, 2BK321, 2BK32-1, 84431246, 2MB34x1

Click to Enlarge

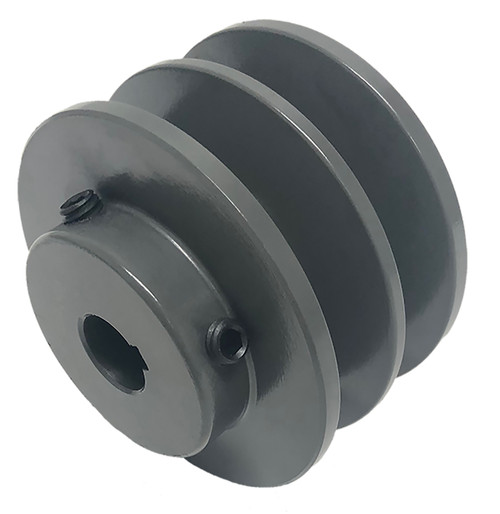

2BK32x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK32x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK32x1
Type 1
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 3.350
Face Width (in) 1.750
Overall Length (in) 2.219
Hub Diameter (in) 1.875
Min. Bore (in) 0.625
MOQ 1
Pitch Dia. "A" 2.600
Pitch Dia. "B" 3.000
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.68
Part Number Cross Reference 2BK32 1., 2BK32-1 PULLEY, 20179821, 121751, 2BK321, 2BK32-1, 84431246, 2MB34x1
Grooves 2
Set Screw Quantity 1
