2BK36H, V-Belt Pulley

2BK36H, 2BK36-QT, 20179550, 2MBL37

Product Details for 2BK36H

Comparable to: 2BK36H, 2BK36-QT, 20179550, 2BK36, 00754564, 2MBL38, 2BK36QT

Click to Enlarge

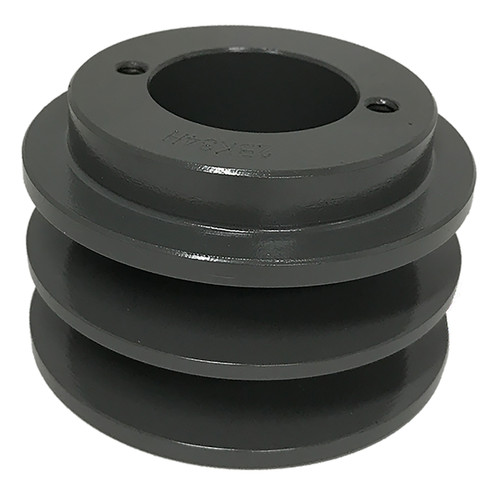

2BK36H, V-Belt Pulley, Cast Iron

Learn more about 2BK36H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2BK36H
Type 1
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 3.750
Face Width (in) 1.750
Overall Length (in) 2.375
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 3.000
Pitch Dia. "B" 3.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.00
Part Number Cross Reference 2BK36H, 2BK36-QT, 20179550, 2BK36, 00754564, 2MBL38, 2BK36QT
Grooves 2
