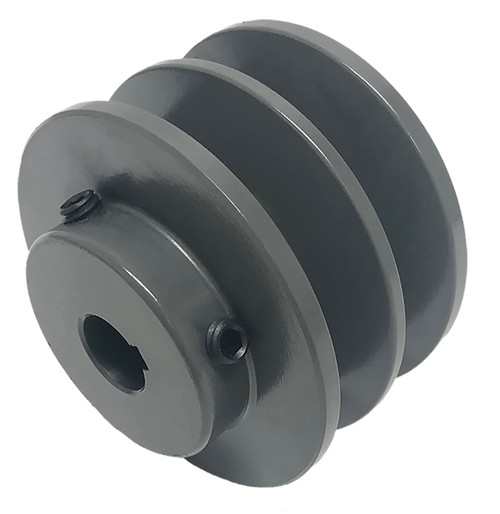

2BK36x1, V-Belt Pulley

2BK36x1

2BK36x1

2BK36x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK36x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK36x1
Type 1
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 inch Finished Bore
Outside Diameter (in) 3.750
Face Width (in) 1.750
Overall Length (in) 2.219
Hub Diameter (in) 2.125
Min. Bore (in) 0.750
Unit System Inch
MOQ 1
Pitch Dia. "A" 3.000
Pitch Dia. "B" 3.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 3.44
Part Number Cross Reference 2BK36 1, 2BK36x1, 2BK36x1
Grooves 2
Set Screw Quantity 1

Related Products

Comparable to: 2BK36 1, 2BK36x1, 2BK36x1
